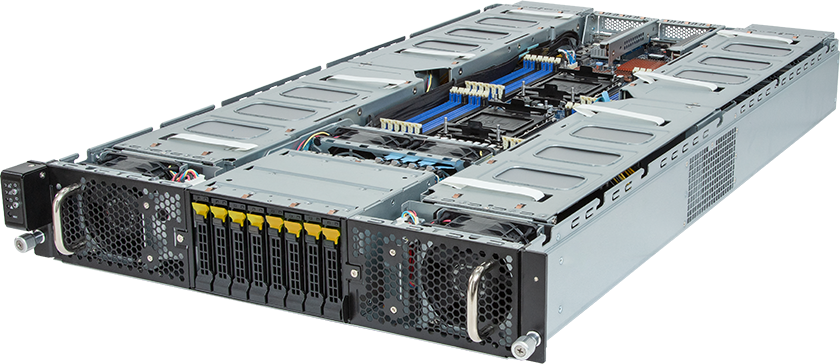

TITAN G620R-G6

AI & GPU Server

The CIARA TITAN G620R-G6 AI & GPU Server is built for AI, hyperscale, GPU rendering and scientific simulation workloads.
  • 2U
  • Dual 5th or 4th Gen Intel® Xeon® Scalable Processors
  • Supports 8 dual-slot GPUs
  • Up to 3TB DDR5-5600 MT/s memory
  • 8 x 2.5" hot-swap drive bays
  • ASPEED AST2600 management
  • 3000W (1+1) 80 PLUS Titanium Power Supply
  • Perfect for Cloud Data Centers, Hyperscale, AI and more
TITAN G620R-G6 Datasheet

Product Overview

Looking for a high-performance, scalable system to meet your GPU computing needs? The dual 5th Gen Intel® Xeon® Scalable powered CIARA TITAN G620R-G6 GPU server delivers industry-leading performance for data center agility and significantly improves workload throughput. It features flexible support for up to 64 cores per socket, 8 dual-slot PCIe 4.0 x16 GPU cards, 3 TB of DDR5 5600 MT/s memory, and 8 drive bays in a 2U chassis.

TITAN G620R-G6

Key Features and Benefits

Accelerated Workloads

Unmatched Serviceability

Perfect For

Cloud Data Centers

Hyperscale

HPC

AI

GPU Rendering

Simulation

Trademarks: Intel, the Intel logo, Intel Core, Intel Inside, the Intel Inside logo, Intel vPro and Xeon are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Other company, product or service names may be trademarks or service marks of others.
Trademarks: AMD, and the AMD Arrow logo, AMD EPYC, Ryzen, Threadripper and combinations thereof are trademarks of Advanced Micro Devices Inc.

Tech Specs

Form Factor 2U
Processor Dual 4th or 5th Gen Intel® Xeon® Scalable Processors (TDP up to 350W) *Supports 350W CPU at certain ambient temperature, contact Sales for more details.
Cooling System Enhanced air cooling based on CPU TDP for versatile workloads.
Memory 8 Channel memory per processor architecture 24 x DIMM slots DDR5 5600 MT/s/4800 MT/s RDIMM/ 3DS RDIMM Up to 3 TB
Network Controller 2 x 10Gb/s BASE-T (Broadcom BCM57416) Supported NCSI Function 1 x 10/100/1000 mangemenet LAN
Storage 8 x 2.5” hot-swappable HDD/SSD bays - 4 x Gen4 NVMe or SATA/SAS - 4 x SATA/SAS
Expansion Slots 8 x PCIe x16 slots (Gen4, FHFL) Support Dual-Slot GPU Cards 2 x PCIe x16 slots (Gen5, LP)
Front I/O 1 x Power button with LED 1 x ID button with LED 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED 1 x Reset button
Rear I/O 2 x USB 3.2 Gen1 1 x VGA 2 x RJ45 1 x MLAN 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x NMI button 1 x System status LED
Management Aspeed® AST2600 management controller
Power Supply Dual 3000W (240V) 80 PLUS Titanium redundant power supply
Environment Operating temperature: 10°C to 35°C Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 90% (non-condensing)
Dimensions (DxWxH) 800mm x 448mm x 87.5mm 31.5" x 17.63" x 3.44"
OS Support Windows Server 2019 Windows Server 2022 Red Hat Enterprise Linux 8.6 (x64) or later Red Hat Enterprise Linux 9.0 (x64) or later SUSE Linux Enterprise Server 15 SP4 (x64) or later Ubuntu 20.04.5 LTS (x64) or later Ubuntu 22.04 LTS (x64) or later VMware ESXi 7 P05 or later VMware ESXi 8 or later Citrix Hypervisor 8.2.1 or later
