CIARA Logo

TITAN GL545R-G6

AI & GPU Server

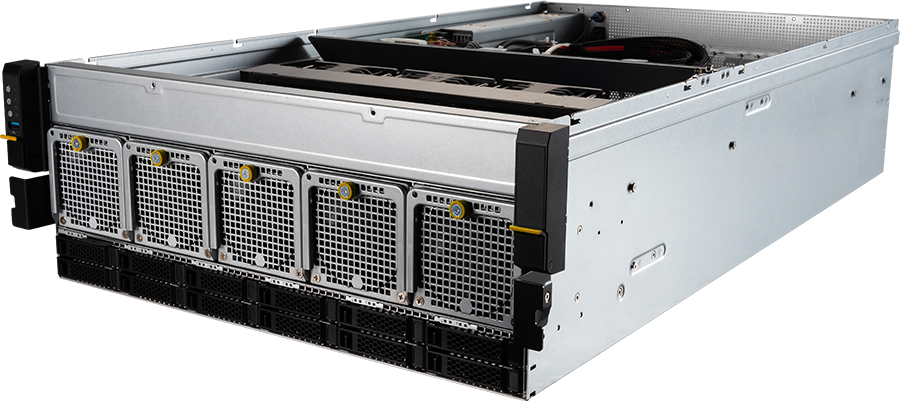

The CIARA TITAN GL545R-G6 is a powerful and adaptable 4U AI & GPU server designed for compute-intensive workloads.
  • 4U
  • Single AMD EPYC™ 9004 Series processor
  • Supports 4 dual-slot GPUs
  • Up to 3TB DDR5-4800 MT/s memory
  • 12 x 2.5” U.2 NVMe hot-swap drive bays
  • ASPEED AST2600 management
  • 3000W (1+1) 80 PLUS Platinum Power Supply
  • Perfect for Machine Learning, Deep Learning, AI Inference and more
TITAN GL545R-G6 Datasheet

Product Overview

The CIARA TITAN GL545R-G6 is a powerful and adaptable 4U server designed for compute-intensive workloads. Optimized for AI training, complex simulations, and media production, it delivers high processing power, fast storage, and scalable expansion to meet demanding performance requirements.

With advanced liquid cooling for high-power CPUs and a flexible architecture, it ensures efficient thermal management, reliability, and workload adaptability. This makes it an ideal solution for organizations seeking scalable, high-performance infrastructure.

TITAN GL545R-G6

Key Features and Benefits

High-Performance Processing

Advanced Memory Support

Extensive Expansion Capabilities

Storage Options

Perfect For

Machine Learning

Deep Learning

AI Inference

Gen AI

HPC

Trademarks: Intel, the Intel logo, Intel Core, Intel Inside, the Intel Inside logo, Intel vPro and Xeon are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Other company, product or service names may be trademarks or service marks of others.
Trademarks: AMD, and the AMD Arrow logo, AMD EPYC, Ryzen, Threadripper and combinations thereof are trademarks of Advanced Micro Devices Inc.

Tech Specs

Form Factor 4U
Processor Single AMD EPYC™ 9004 Series processor (TDP up to 500W)
Cooling System 1 x Liquid cooling module (for max 500W CPU) 5 x 8038 Easy-swap chassis fans
Memory 12 Channel memory per processor architecture 12 x DIMM slots DDR5 4800 MT/s/4400 MT/s RDIMM/ 3DS RDIMM Up to 3TB
Network Controller 1 x 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG)
Storage 12 x 2.5” U.2 PCIe 4.0 NVMe hot-swap drive bays
Expansion Slots 4 x PCIe x16 slots (Gen 5, FH, FL) 2 x PCIe x16 slots (Gen 4, FH, FL)
Front I/O 1 x USB 3.2 Gen 1 Type-A port 1 x Power button/ LED 1 x UID button/ LED 1 x Reset button
Rear I/O 1 x GbE RJ45 Port (mgmt.) 2 x USB 3.2 Gen 1 Type-A ports 1 x COM RJ45 port 1 x VGA port 1 x UID button 3 x Status LEDs (Power/ HDD/ Alarm)
Management ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API Dual BMC
Power Supply 1+1 Redundant 3000W CRPS 80PLUS Platinum
Environment Operating temperature: 0°C to 35°C (32°F to 95°F) Non-operating temperature: -20°C to 70°C (-4°F to 158°F) Non-operating humidity: 5% to 85% (non-condensing)
Dimensions (DxWxH) 438mm x 176mm x 831mm 17.20" x 6.9" x 32.7"
Estimated Weight Net Weight: 95 kg / 209.44 lb Gross Weight: 105 kg / 231.49 lb
OS Support Windows Server 2019 Windows Server 2022 Red Hat Enterprise Linux 8.6 (x64) or later Red Hat Enterprise Linux 9.0 (x64) or later SUSE Linux Enterprise Server 15 SP4 (x64) or later Ubuntu 20.04.5 LTS (x64) or later Ubuntu 22.04 LTS (x64) or later VMware ESXi 7 P05 or later VMware ESXi 8 or later Citrix Hypervisor 8.2.1 or later
