TITAN GS835R-G6 MI300A

AI & GPU Server

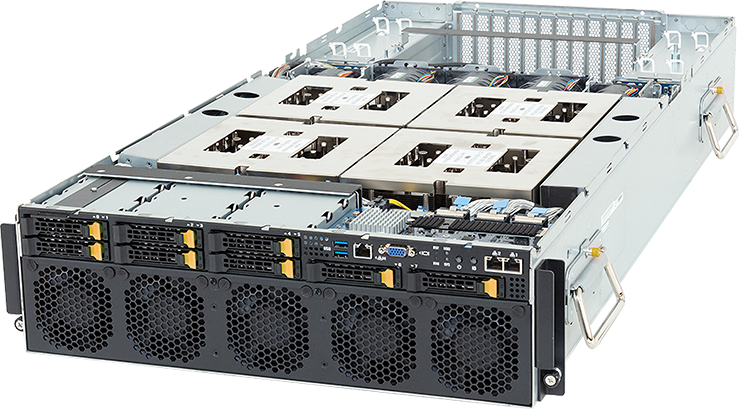

The CIARA TITAN GS835R-G6 MI300A is a 3U high-performance server built for AI and HPC workloads.
  • 3U
  • 4 x AMD Instinct™ MI300A APUs
  • 128GB HBM3 unified memory (5.3TB/s)
  • 8 x 2.5” hot-swap drive bays
  • ASPEED AST2600 management
  • 3000W (3+1) 80 PLUS Titanium Power Supply
  • Perfect for Machine Learning, Deep Learning, AI Inference and more
TITAN GS835R-G6 MI300A Datasheet

Product Overview

The CIARA TITAN GS835R-G6 MI300A is a 3U high-performance server built for AI and HPC workloads. It features four AMD Instinct™ MI300A APUs, each with 24 Cores Zen 4 x86 CPU cores, 228 CDNA™ 3 high-throughput GPU compute units, and 128GB unified HBM3 memory delivering at Peak Theoretical 5.3 TB/s bandwidth.

With eight 2.5″ Gen5 NVMe hot-swappable bays and eight PCIe Gen5 x16 slots, it offers high-speed storage and extensive expansion. Networking includes dual 10Gb/s LAN ports and a dedicated management LAN port. Powered by a 3+1 3000W 80 PLUS Titanium PSU, it combines reliability and energy efficiency for demanding applications.

TITAN GS835R-G6 MI300A

Key Features and Benefits

Integrated APU Architecture

High-Speed Storage

Extensive Expansion Options

Robust Networking

Perfect For

Machine Learning

Deep Learning

AI Inference

Gen AI

HPC

Trademarks: Intel, the Intel logo, Intel Core, Intel Inside, the Intel Inside logo, Intel vPro and Xeon are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Other company, product or service names may be trademarks or service marks of others.
Trademarks: AMD, and the AMD Arrow logo, AMD EPYC, Ryzen, Threadripper and combinations thereof are trademarks of Advanced Micro Devices Inc.

Tech Specs

Form Factor 3U
GPU 4 x AMD Instinct™ MI300A APUs
Processor 4 x AMD Instinct™ MI300A APUs - 24 x Zen4 CPU cores per APU - 228 x CDNA3 compute units per APU - TDP up to 550W (CPU + GPU + memory) - Peak up 550W (Air & Liquid) & 760W (Liquid to Liquid)
Cooling System Passive air cooling Optional: Liquid to Liquid cooling
Memory 128GB HBM3 unified memory Memory bandwidth 5.3TB/s
Network Controller 2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416) Support NCSI function 1 x 10/100/1000 Mbps Management LAN
Storage 8 x 2.5" Hot-swap Storage Bays
Expansion Slots PCIe Cable x 8: 4 x PCIe x16 (Gen5 x16) FHFL slots (Dual slot) 4 x PCIe x16 (Gen5 x16) FHFL slots (Single slot) 1 x M.2 slot: - M-key - PCIe Gen5 x4, from APU_0 - Supports 2280/22110 cards
Front I/O 2 x USB 3.2 Gen1 1 x VGA 2 x RJ45 1 x MLAN 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 1 x Storage activity LED 1 x System status LED
Rear I/O N/A
Management Aspeed® AST2600 Baseboard Management Controller
Power Supply 3+1 3000W 80 PLUS Titanium redundant power supplies
Environment Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 60°C (-40°F to 140°F) Non-operating humidity: 20% to 95% (non-condensing)
Dimensions (DxWxH) 447mm x 131mm x 950mm 15.6" x 5.16" x 37.4"
Estimated Weight Net Weight : 20.3 kg / 44.75 lb Gross Weight : 26.77 kg / 59.02 lb
OS Support Oracle Linux 8.10 Red Hat Enterprise Linux 8.10 Red Hat Enterprise Linux 9.4 Red Hat Enterprise Linux 9.5 SUSE Linux Enterprise Server 15 SP5 SUSE Linux Enterprise Server 15 SP6 Ubuntu 22.04.5 LTS Ubuntu 24.04.2 LTS VMWare ESXi 7.0.3 VMWare ESXi 8.0.3

Resources

Product Downloads

  • TITAN GS835R-G6 MI300A Datasheet
