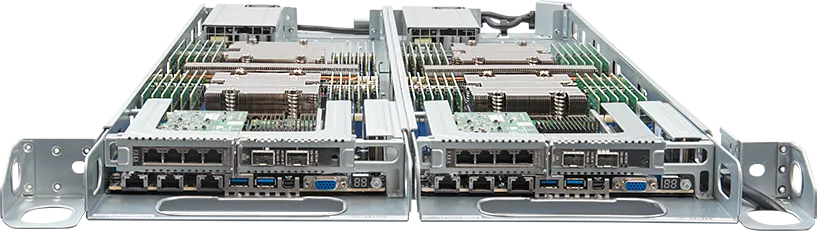

TRIDENT iC615DR-G6 Front

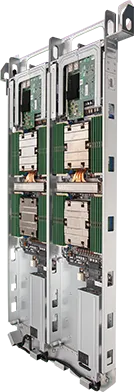

TRIDENT iC615DR-G6 Right

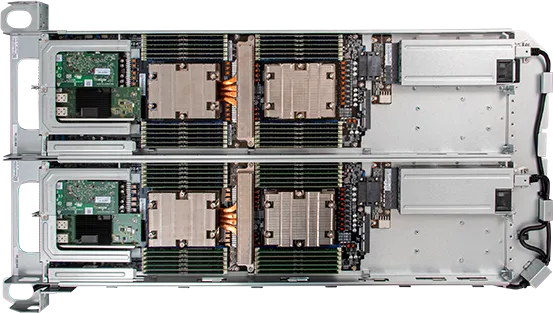

TRIDENT iC615DR-G6 Top
TRIDENT iC615DR-G6 Front 2D
TRIDENT iC615DR-G6 Node
No items found.
5th Gen AMD EPYC™
AMD Alveo Logo
AMD Instinct MI300A Logo
No items found.
CIARA Logo

TRIDENT iC615DR-G6

Immersion Compute Server

The CIARA TRIDENT iC615DR-G6 is purpose-built for single-phase immersion cooling and high-density computing.
  • 1U 2-Node
  • Dual AMD EPYC™ 9004 and 9005 Series processors per node
  • 2 x PCIe 5.0 x16 HHHL cards per node
  • Up to 6TB DDR5-4800MT/s memory per node
  • 2 x M.2 and 2 x Fixed 2.5" SSD per node
  • ASPEED AST2600 management
  • Single CRPSU 1600W per node
  • Perfect for HPC, AI, Edge Computing and more
TRIDENT iC615DR-G6 Datasheet

Product Overview

The CIARA TRIDENT iC615DR-G6 is purpose-built for single-phase immersion cooling and high-density computing. With dual-socket AMD EPYC™ 9005 and 9004 processors supporting up to 400W TDP per CPU, this server delivers immense computational power for demanding workloads like AI, deep learning, and simulations.

Each node supports up to 6TB of DDR5 memory, a 12-channel memory architecture, and flexible expansion options, including PCIe Gen 5 and M.2 slots.

Available in both 19" and 21" configurations, it provides versatility for varied deployment needs.

TRIDENT iC615DR-G6

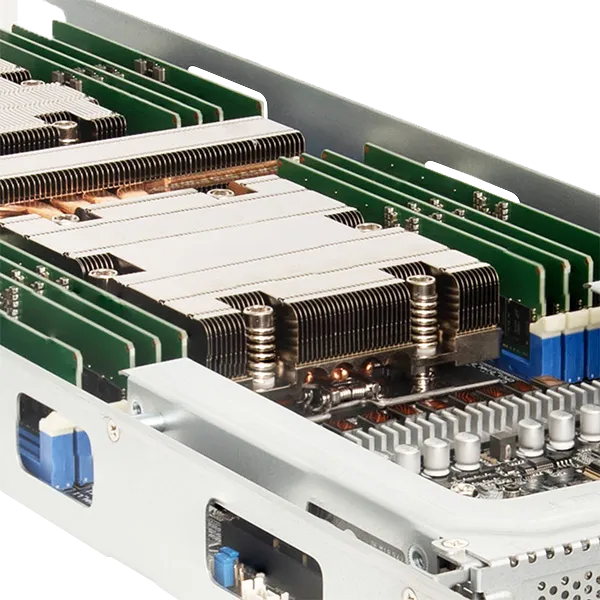

TRIDENT iC615DR-G6 Memory

Key Features and Benefits

Exceptional Processing Performance

Massive Memory Capacity and Speed

Advanced Expandability

Compact Design and Deployment Options

Perfect For

HPC

Visual Computing

Edge Computing

AI

Machine Learning

Deep Learning

Trademarks: Intel, the Intel logo, Intel Core, Intel Inside, the Intel Inside logo, Intel vPro and Xeon are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Other company, product or service names may be trademarks or service marks of others.
Trademarks: AMD, and the AMD Arrow logo, AMD EPYC, Ryzen, Threadripper and combinations thereof are trademarks of Advanced Micro Devices Inc.

Tech Specs

1U 2-Node AMD (TRIDENT Immersion-born) - Chassis

Product Category Immersion High Density Compute Server
Form Factor 2 dual-socket compute nodes in a 1U chassis
Cooling System Single-Phase Immersion Cooling
Power Supply Included in each Node - Single CRPSU 1600 W
Dimensions (L x W x H) 21” Option: 33.94” x 20.30” x 1.75” (862mm x 516mm x 44.5mm) 19" Option: 33.94" x 17.48” x 1.75” (862mm x 445mm x 44.5mm)
Estimated Weight 43.7 lb / 19.9 kg

Node Specifications

Processor Dual AMD EPYC™ 9004 and 9005 Series processors, TDP up to 400W
Chipset Embedded PCH
Heatsink Immersion Cooling Custom Heatsink
TIM Indium Foil
Memory Up to 6TB DDR5-4800 MT/s RDIMM / 3DS (24 x DIMM) 12-channel memory architecture Supports RDIMM, LRDIMM, 3DS RDIMM/LRDIMM
Network Controller Intel® x710 Dual-Port 10GbE 10G BASE-T Single-Port Dedicated Management 1GbE 1G BASE-T
Storage 2 x M.2 NVMe SSD up to 22110 (PCIe) 2 x Fixed 2.5” SSD (HBA or RAID Card Required)
Expansion Slots 2 x PCIe 5.0 x16 HHHL
GPU/FPGA Capabilities N/A or 2 x if HHHL
I/O Top 2 x USB 3.2 1 x Mini DP 1 x RJ45 MLAN 2 x RJ45 10GbE LAN 1 x Q-code/Port 80 LED 1 x VGA Port
Management Aspeed® AST2600
OS Support Windows Server 2019 Red Hat Enterprise Linux 8.3 (x64) or later SUSE Linux Enterprise Server 15 SP2 (x64) or later Ubuntu 20.04.1 LTS (x64) or later VMware ESXi 7.0 Update 2 or later

Resources

Product Downloads

  • TRIDENT iC615DR-G6 Datasheet

Related Products

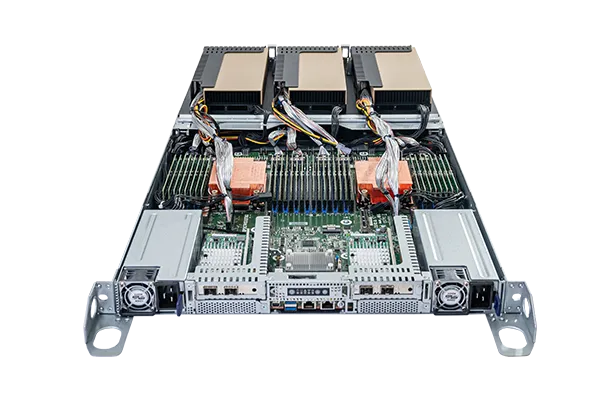

TRIDENT iG620R-G6

TRIDENT iG620R-G6

Immersion GPU Server
The CIARA TRIDENT iG620R-G6 is purpose-built to meet the needs of the most demanding AI workloads.
View Product

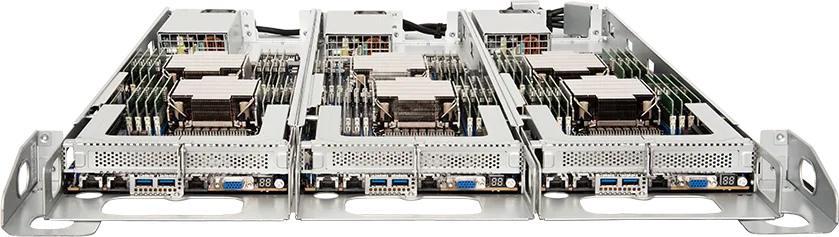

TRIDENT iC610TR-G6

TRIDENT iC610TR-G6

Immersion Compute Server
The sustainable CIARA TRIDENT iC610TR-G6 is engineered to meet the demands of today’s most complex workloads.
View Product

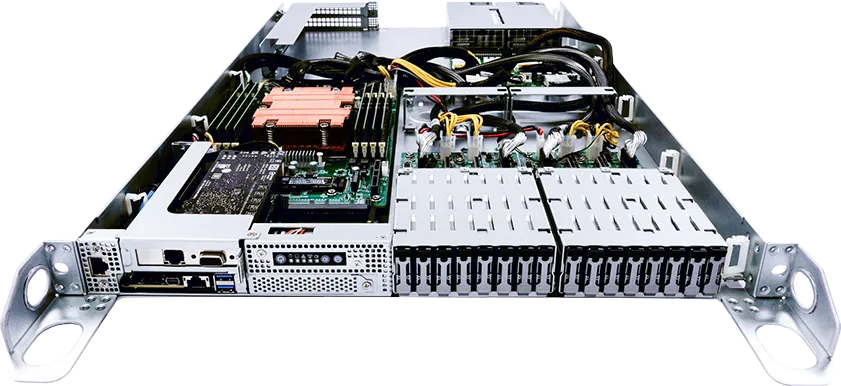

TRIDENT iS515R-G6

TRIDENT iS515R-G6

Immersion Storage Server
The CIARA TRIDENT iS515R-G6 delivers exceptional immersion-optimized performance and massive storage.
View Product

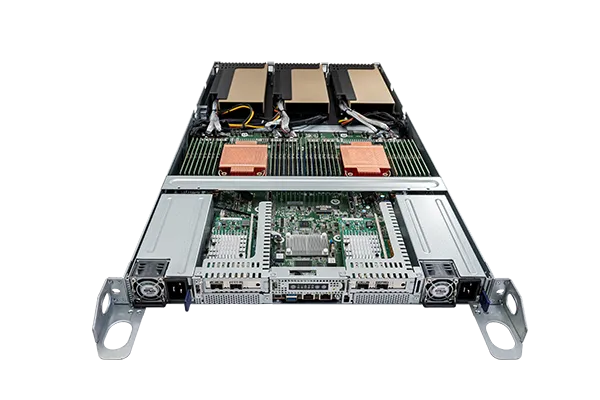

TRIDENT iG610R-G6

TRIDENT iG610R-G6

Immersion GPU Server
The CIARA TRIDENT iG610R-G6 is optimized for Gen AI, ML, DL, LLM training and beyond.
View Product

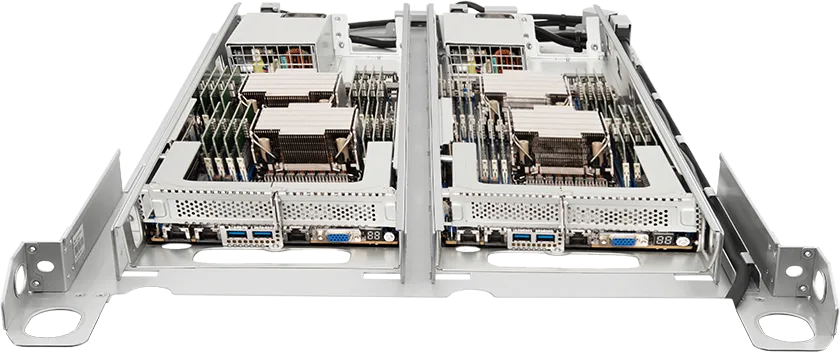

TRIDENT iC610DR-G6

TRIDENT iC610DR-G6

Immersion Compute Server
The CIARA TRIDENT iC610DR-G6 is the perfect solution for HPC, rendering and edge computing.
View Product

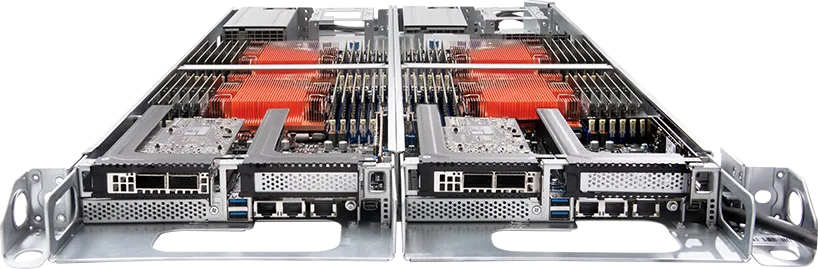

TRIDENT iC610DR-G7-AP
