TRIDENT iG610R-G6

Immersion GPU Server

The CIARA TRIDENT iG610R-G6 is optimized for Gen AI, ML, DL, LLM training and beyond.

1U
Dual 4th and 5th Gen Intel® Xeon® Scalable Processors
3 x PCIe 5.0 x16 FHFLDW and 2 x PCIe 5.0 x16 HHHLSW
Up to 8TB DDR5-5600 MT/s memory
2 x M.2 (PCIe 4.0 x4)
ASPEED AST2600 management
3000W (1+1) Redundant 80 PLUS Titanium Power Supply
Perfect for AI, HPC, Edge Computing and more

Product Overview

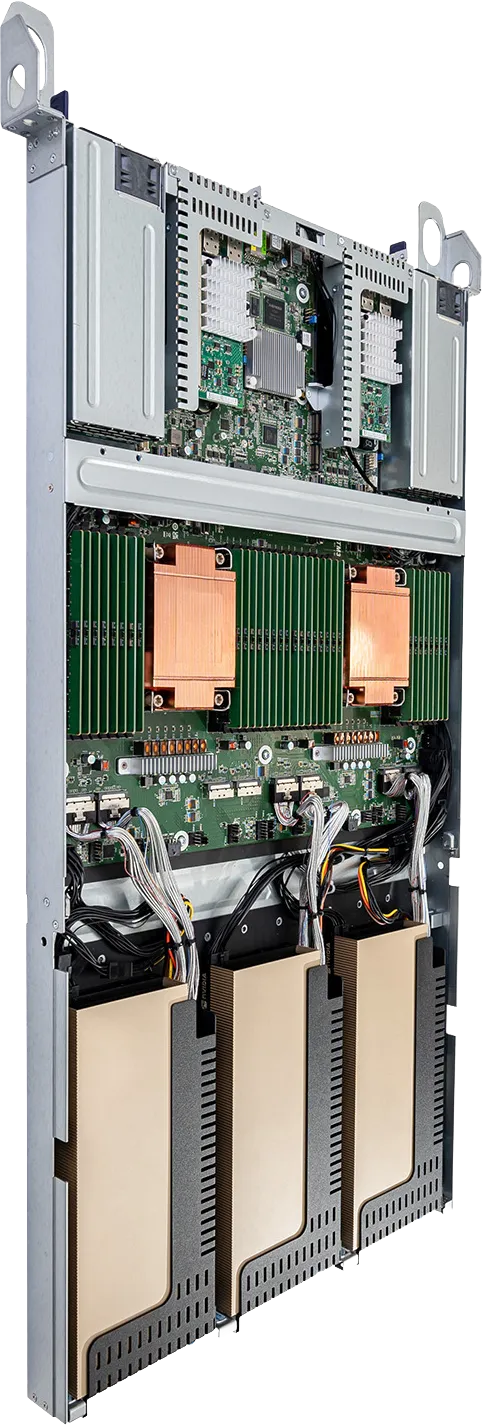

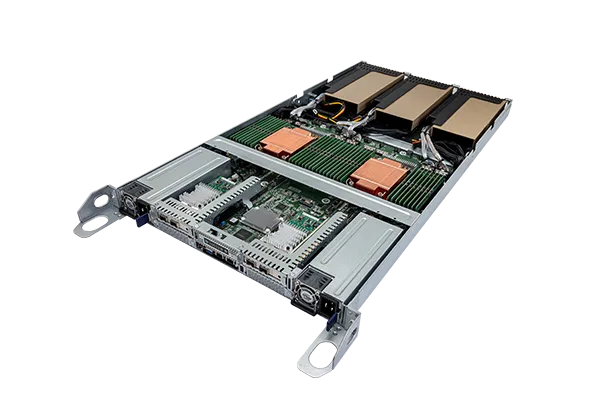

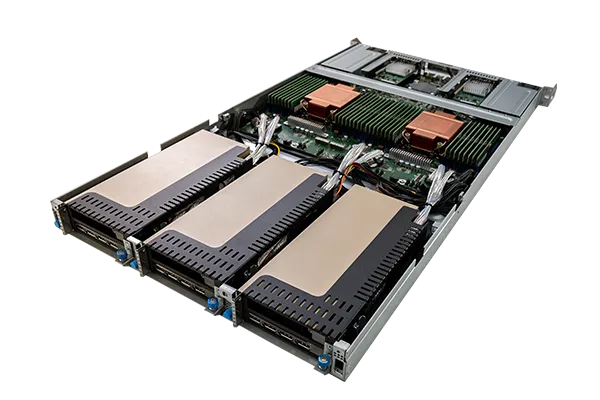

The CIARA TRIDENT iG610R-G6 is an immersion-born GPU server, purpose-built for organizations with high demands in AI and compute-intensive applications. With a streamlined 1U form factor, it integrates three GPUs in a PCIe-based architecture and dual 4th or 5th Gen Intel® Xeon® Scalable processors, providing outstanding processing capability for data-intensive tasks.

Designed with a tiered thermal management system, the CIARA TRIDENT iG610R-G6 maintains low consistent temperatures across critical components, ensuring peak performance and preventing thermal imbalances.

Ideal for Gen AI, Machine Learning, Deep Learning, Inferencing, Fine Tuning, Training Language Models, HPC, Data Analytics, Edge Computing, Research etc.—this server is born for immersion-cooled environments, offering these industries the reliability, scalability, and efficiency essential for smooth support of advanced applications.

Key Features and Benefits

Perfect For

AI

AI Inference

AI Training

HPC

Data Analytics

Edge Computing

Research

Trademarks: Intel, the Intel logo, Intel Core, Intel Inside, the Intel Inside logo, Intel vPro and Xeon are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Other company, product or service names may be trademarks or service marks of others.

Trademarks: AMD, and the AMD Arrow logo, AMD EPYC, Ryzen, Threadripper and combinations thereof are trademarks of Advanced Micro Devices Inc.

Tech Specs

	1U - 3 GPU (TRIDENT Immersion-born)
Product Category	Immersion GPU Server
Form Factor	1U
Cooling System	Single-Phase Immersion Cooling
Power Supply	1+1 Redundant CRPS 3000W/3200W AC - 80 PLUS Titanium Power Supply
Dimensions (L x W x H)	33.85" x 17.48” x 1.75” 860mm x 445mm x 44.5mm
Estimated Weight	67 lb 30.4 kg
Processor	Dual 4th and 5th Gen Intel® Xeon® Scalable Processors, TDP up to 350W
Heatsink	Immersion Cooling Custom Heatsink
TIM	Indium Foil
Memory	16+16 DIMM slots (2DPC) 288-pin DDR5 RDIMM/ RDIMM-3DS 8-channel memory architecture RDIMM: 96GB RDIMM-3DS: 2H- 128 GB / 4H- 256 GB 5600 MT/s (1DPC) / 4400 MT/s (2DPC) on 5th Gen Intel® Xeon® Scalable Processors 4800 MT/s (1DPC) / 4400 MT/s (2DPC) on 4th Gen Intel® Xeon® Scalable Processors *Memory speed and capacity support varies by CPU SKU
Network Controller	1 x RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
Storage	2 x M.2 (PCIe 4.0 x4), support 22110/2280 form factor [CPU2]
Expansion Slots	2 x PCIe 5.0 x16 HHHLSW 2 x OCP NIC 3.0 (PCIe 5.0 x16) 3 x PCIe 5.0 x16 FHFLDW
GPU/FPGA Capabilities	Yes (3 x GPU/FPGA)
I/O Top	2 x USB Type A (3.2 Gen1) 1 x Mini Display Port (VGA) 1 x RJ45 dedicated IPMI 1 x RJ45 (COM) 1 x UID Button w/ LED
Management	ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
OCP (ORv3) Availability	NA
OS Support	Microsoft® Windows®: Server 2022 (64 bit) Linux: Red Hat Enterprise Linux Server 8.4 (64 bit) / 8.5 (64 bit) / 9.1 (64 bit) SUSE Enterprise Linux Server 15 SP3 (64 bit) Ubuntu 21.10 (64 bit) / 22.04 (64 bit) Hypervisor: VMWare® ESXi 7.0 U3g / 8.0 *RAID mode is not supported on the Ubuntu system.
