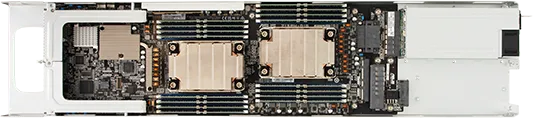

TRIDENT iC610DR-G6 Node Top

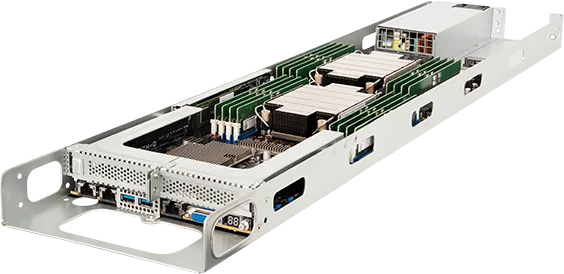

TRIDENT iC610DR-G6 Node Right
No items found.
5th Gen Intel® Xeon® Scalable
No items found.
CIARA Logo

TRIDENT iC610DR-G6

Immersion Compute Server

The CIARA TRIDENT iC610DR-G6 is the perfect solution for HPC, rendering and edge computing.
  • 1U 2-Node
  • Dual 4th and 5th Gen Intel® Xeon® Scalable Processors per node
  • 2 x PCIe 5.0 x16 HHHL cards per node
  • Up to 6TB DDR5-5600MT/s memory per node
  • 2 x M.2 and 2 x Fixed 2.5" SSD per node
  • ASPEED AST2600 management
  • Single CRPSU 1200W per node
  • Perfect for HPC, AI, Edge Computing and more
TRIDENT iC610DR-G6 Datasheet

Product Overview

The CIARA TRIDENT iC610DR-G6 Immersion-born server is the perfect solution for industries relying on high-performance computing. It features two dual-socket nodes in a 1U chassis, each equipped with 4th or 5th Gen Intel® Xeon® Scalable processors, offering powerful performance and scalability.

The server's advanced memory configuration and expansion capabilities support seamless adaptability to evolving application demands, whether it's AI, analytics, or scientific modeling. Furthermore, its compatibility with next-generation technologies ensures it remains a future-ready investment for organizations prioritizing efficiency and sustainability.

Engineered for high performance, CIARA TRIDENT iC610DR-G6 stands out as a reliable, efficient, and forward-thinking solution for modern data centers.

TRIDENT iC610DR-G6

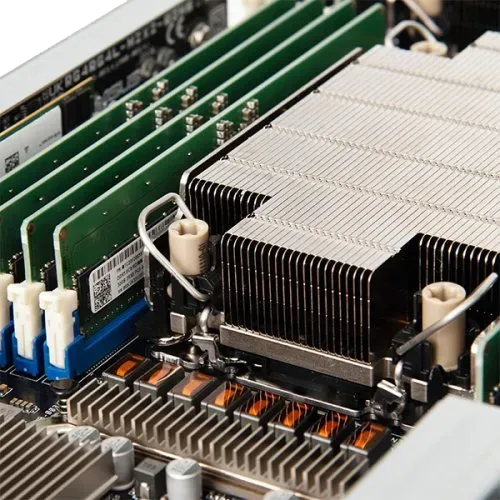

TRIDENT iC610DR-G6 Memory

Key Features and Benefits

Powerful Performance

Innovative Immersion Cooling Design

Advanced Memory Scalability

Space-Efficient High-Density Design

Perfect For

HPC

Visual Computing

Edge Computing

AI

Machine Learning

Research

Data Analytics

Trademarks: Intel, the Intel logo, Intel Core, Intel Inside, the Intel Inside logo, Intel vPro and Xeon are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Other company, product or service names may be trademarks or service marks of others.
Trademarks: AMD, and the AMD Arrow logo, AMD EPYC, Ryzen, Threadripper and combinations thereof are trademarks of Advanced Micro Devices Inc.

Tech Specs

1U 2-Node Intel® (TRIDENT Immersion-born) - Chassis
Product Category Immersion High Density Compute Server
Form Factor 2 dual-socket compute nodes in a 1U chassis
Cooling System Single-Phase Immersion Cooling
Power Supply Included in each Node - Single CRPSU 1200 W
Dimensions (L x W x H) 31.93" x 17.48” x 1.75” 811mm x 445mm x 44.5mm
Estimated Weight 43.7 lb / 19.9 kg

Node Specifications
Processor Dual 4th and 5th Gen Intel® Xeon® Scalable Processors, TDP up to 350W
Chipset C741
Heatsink Immersion Cooling Custom Heatsink
TIM Indium Foil
Memory Maximum up to 2 + 4 TB (Per Node, DDR5 + Crow Pass) DDR5-4800 MT/s (16 x DIMM) on 4th Gen Intel® Xeon® Scalable Processors DDR5-5600 MT/s (16 x DIMM) on 5th Gen Intel® Xeon® Scalable Processors
Network Controller Intel® X710-AT2 Dual-Port 10GbE 10GBASE-T Single-Port Dedicated Management 1GbE 1 GBASE-T
Storage 2 x Fixed 2.5” SSD (HBA or RAID Card Required) 2 x M.2 (Up to 22110, SATA or Gen4 x2 link)
Expansion Slots 2 x PCIe 5.0 x16 HHHL
GPU/FPGA Capabilities N/A or 2 x if HHHL
I/O Top 2 x USB 3.0 1 x VGA 1 x RJ45 Management Port 2 x RJ45 GbE LAN Port
Management Aspeed® AST2600
OS Support Windows Server 2019 Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 20.04.1 LTS (x64) or later VMware ESXi 7.0 Update 2 or later
